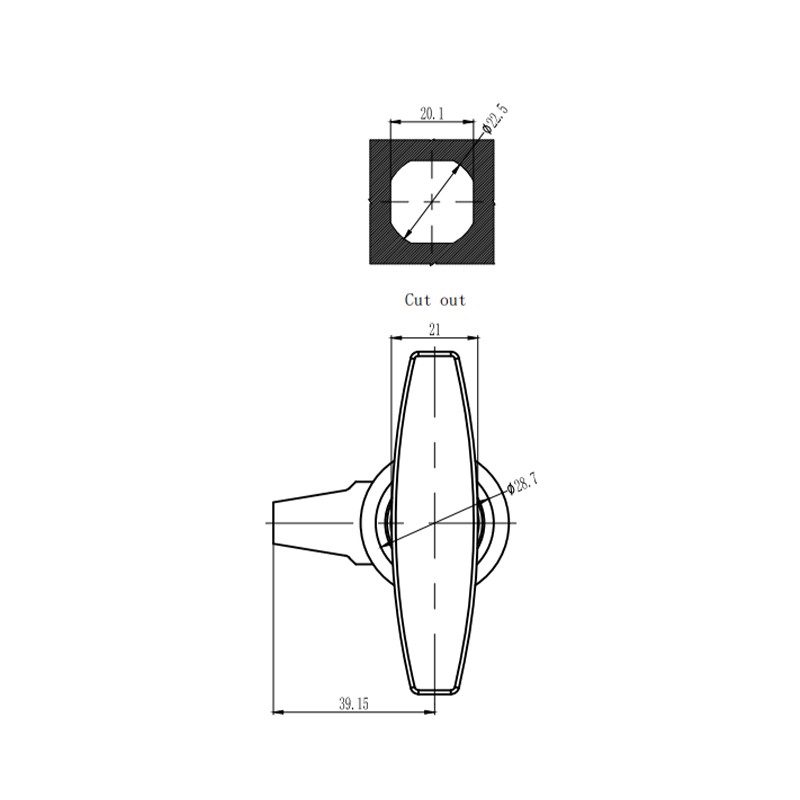

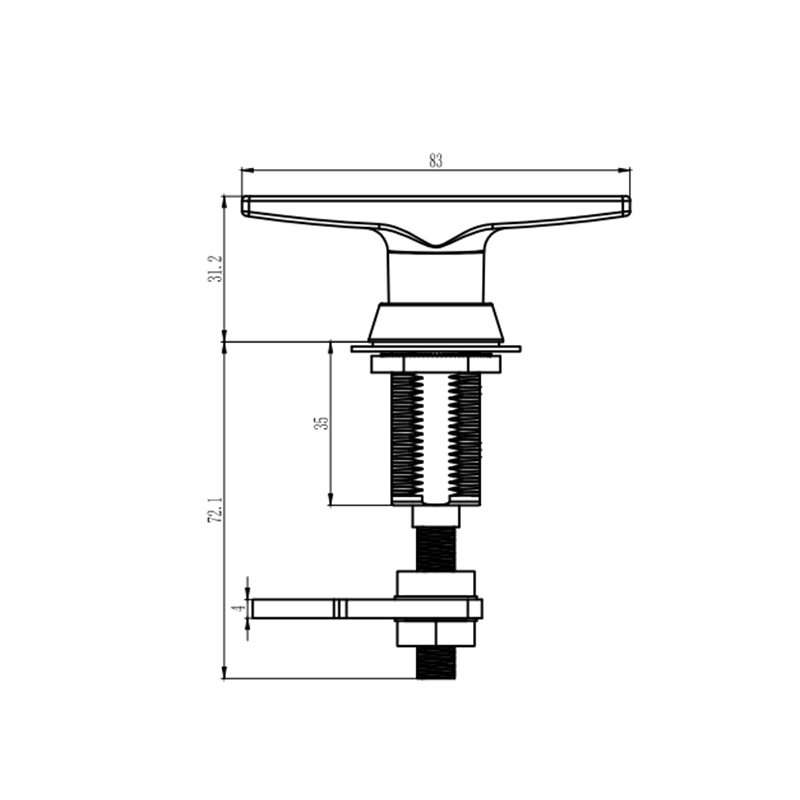

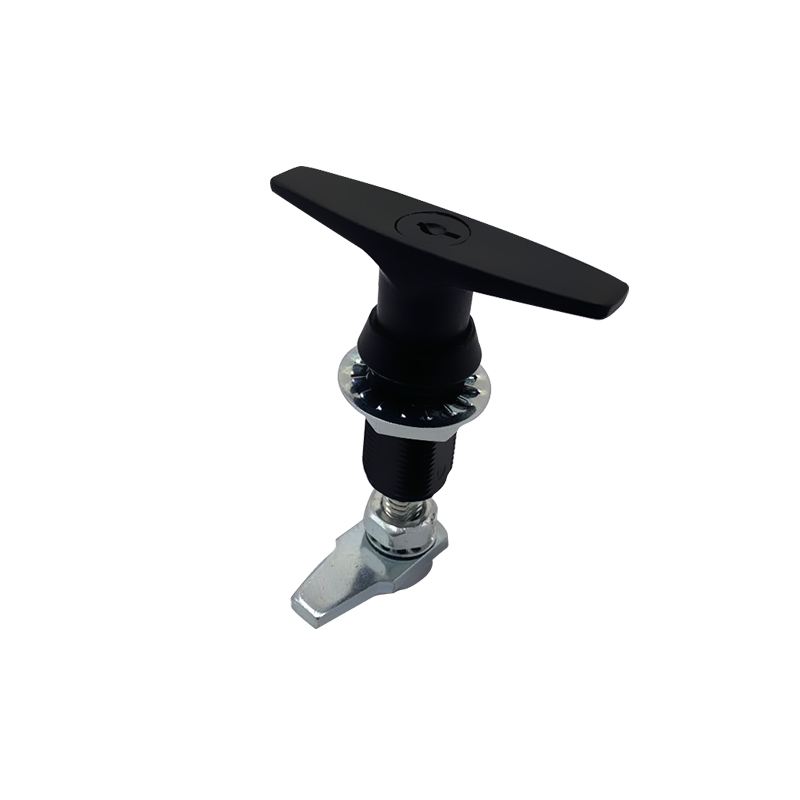

MS309-3D-1
Material: zinc alloy base, handle, lock core, carbon steel bolt;
Surface treatment: Black pitted base, handle, galvanized steel bolt;
Structure description: the handle rotates 200 degrees in total, the 120 degrees realize the expansion distance of the shaft about 7mm, the last 80 degrees realize the rotation function of the steel bolt, and the lock is opened after the rotation of 80 degrees
performance parameter
Maximum static load: 300N
Recommended tightening torque of fixing nut: 20N.m
