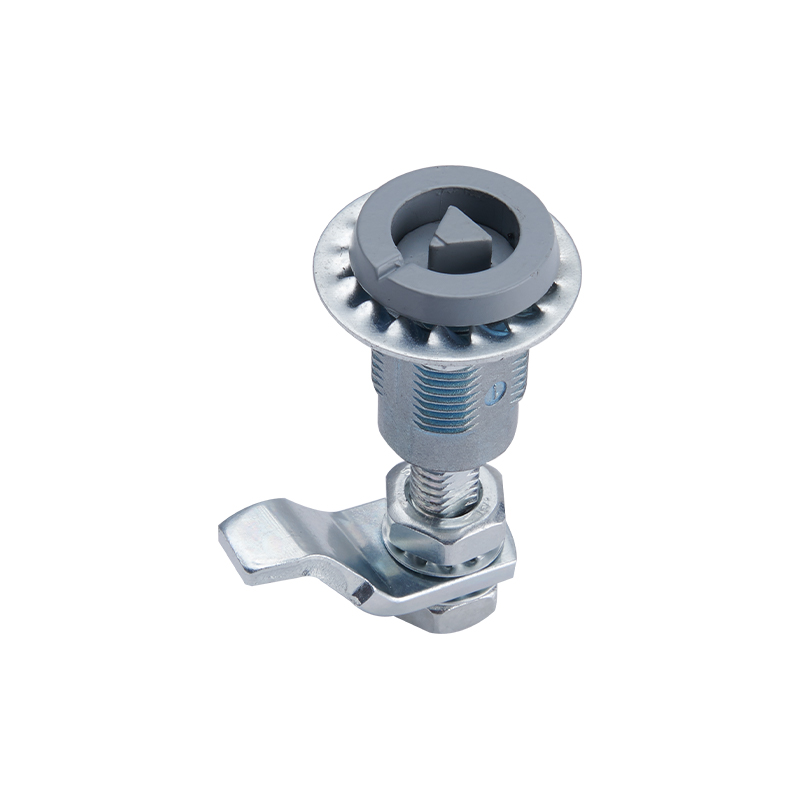

MS816-3-1 Triangular 8mm Lock Cylinder Compression Latch Locks

Material: zinc alloy base, handle, lock core, carbon steel pressing plate, steel bolt

Surface treatment: painting (black and light) base, handle, white zinc plated pressing plate, steel bolt

Structure description: quick opening, convenient installation; adjustable nut can be applied to all kinds of stop range; with expansion function

performance parameter

Handle bearing tension value: ≤ 690n

Maximum static load: 430n

PREV：MS816-3-1S Triangular 8mm Lock Cylinder Compression Latch Locks
NEXT：MS816-1F-1 Triangular 8mm Lock Cylinder Anti-theft Compression Latch Locks

Product Description

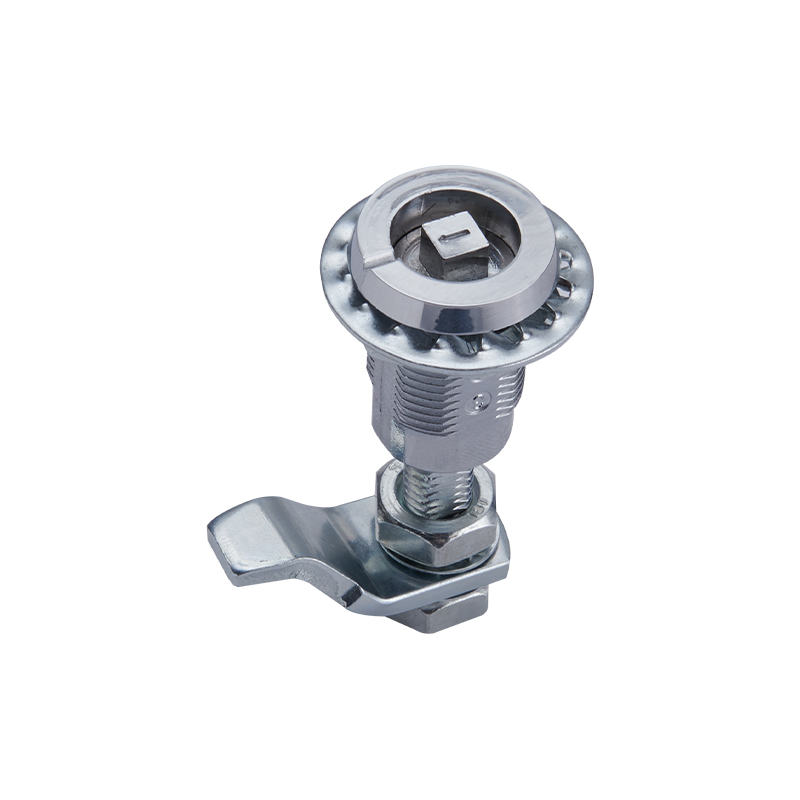

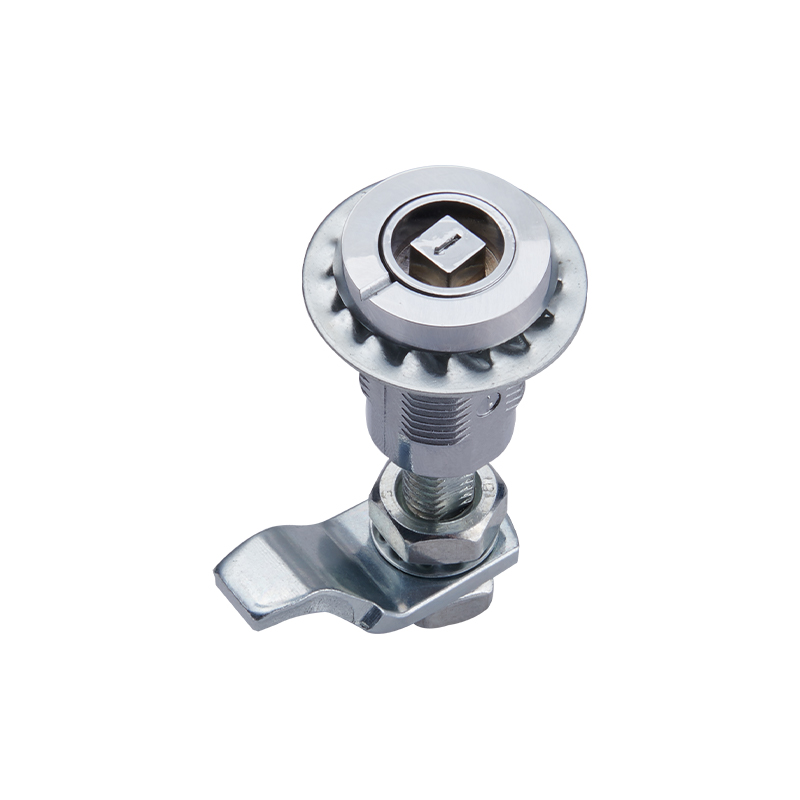

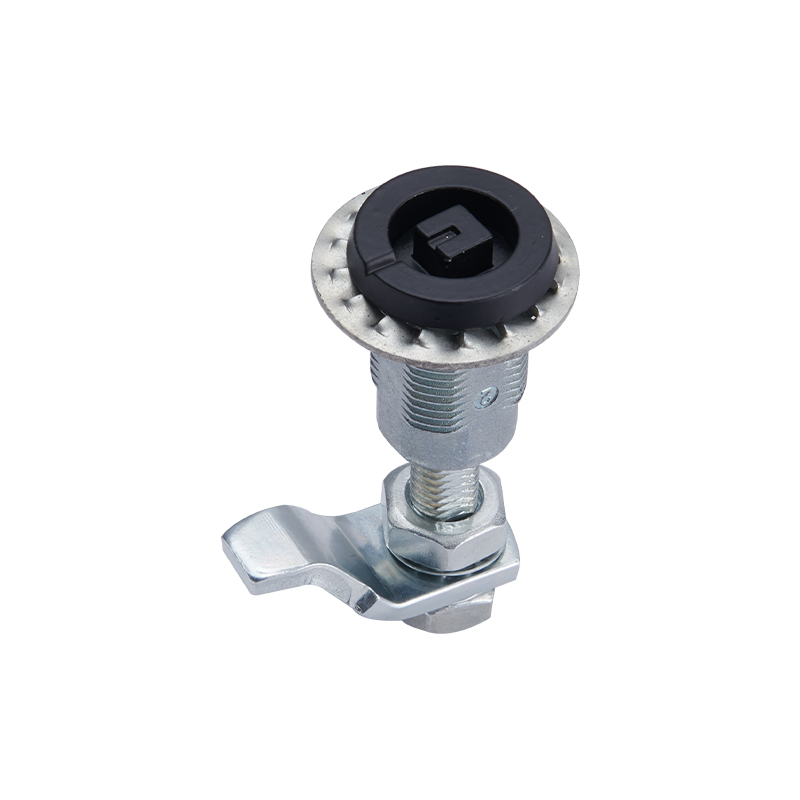

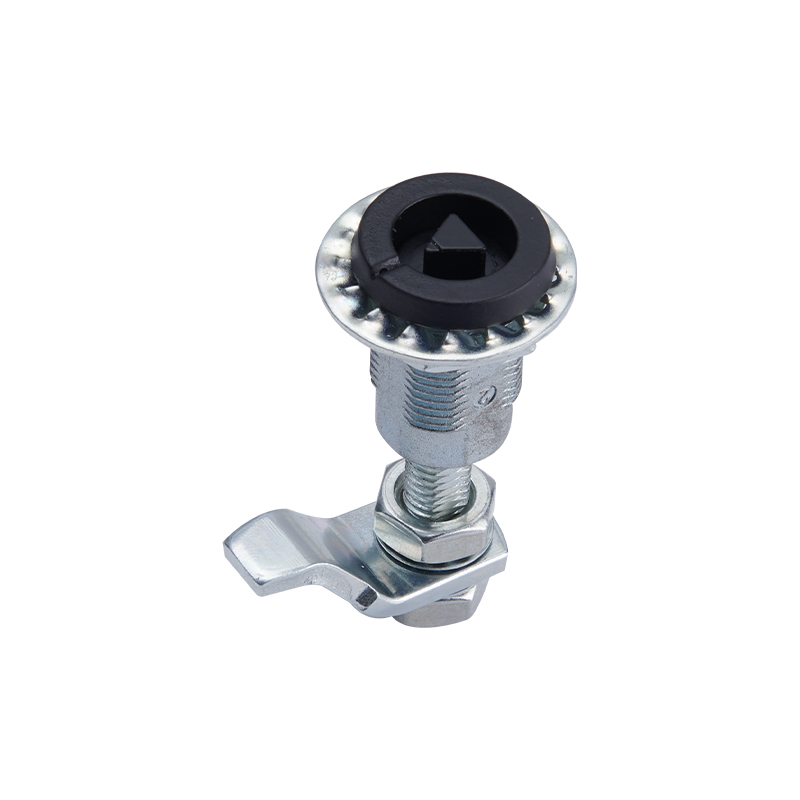

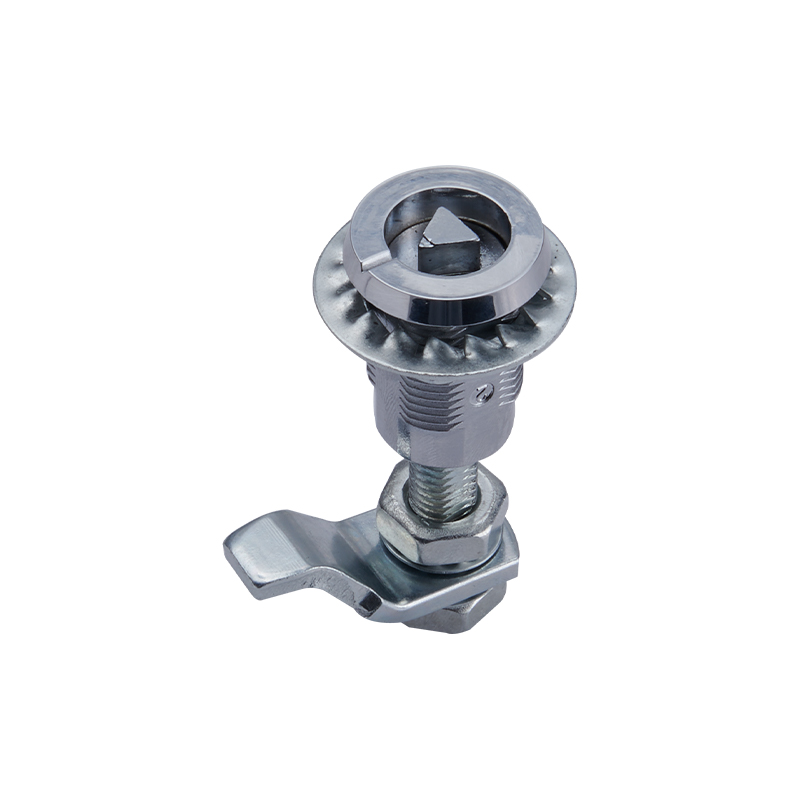

Model：	MS816-3-1	MS816-3-2	MS816-3-3	MS816-3-3A	MS816-3-4	MS816-3-4D	MS816-3-5	MS816-3-6	MS816-3-6A	MS816-3-6D	MS816-3-8	MS816-3-9	MS816-3-9	MS816-3-12	MS816-3-13

Specification：	Triangular 8mm lock cylinder	Model S lock core	Inner hexagon 10mm lock cylinder	Inner hexagon 8mm lock cylinder	8*8mm lock core	Square8*8mm lock cylinder without notch	Outer hexagon 10mm lock cylinder	7*7mm lock core	7 * 7mm lock core with round edge	Square7*7mm lock cylinder without notch	9*9mm lock core	Slotted lock cylinder	Slotted lock cylinder	Spine lock core	Inner hexagon 8 * 8mm lock cylinder with pin post

Weight（g)：	118	118	118	118	118	118	118	118	118	118	118	118	118	118	118
Lot：	160	160	160	160	160	160	160	160	160	160	160	160	160	160	160
